    We are professional manufacture digital video processing products. Digital Witness Digital Surveillance Video Recorder, Targeting & Tracing System, Real Time Video Transfer System. All products are Turn key & Proprietary system. Full D1 Broadcasting quality Video in / out. Provide you pure clearly & real motion Video.

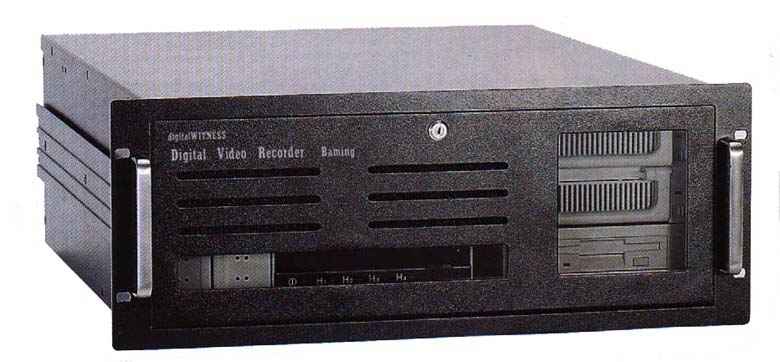

Digital WITNESS Digital Surveillance Video Recorder

digital WITNESS just witnesses digitally




digital WITNESS is a Real Time and Time Lapse video recorder for surveillance and security.
Digital WITNESS is a IPC based stand alone digital video recorder, equipped with our proprietary hardware and operating system with data storage system named "VDFS", "digital WITNESS" performs amazing recording quality and fluent playing back in wide range of speed without any noise.( Hi-speed shuttle searching 1x-300x, slow motion 1x-1/90x).
Real time or time lapse recording.
Digital WITNESS meets all your need, no matter Real Time or Time Lapse recording from 1 frame to 30 frames per second in 640x480 24 bit color mode.
Amazing Video Quality and playing back function.
Fully meets D1 spec.
1/90x to 300x playback speed noise-free.

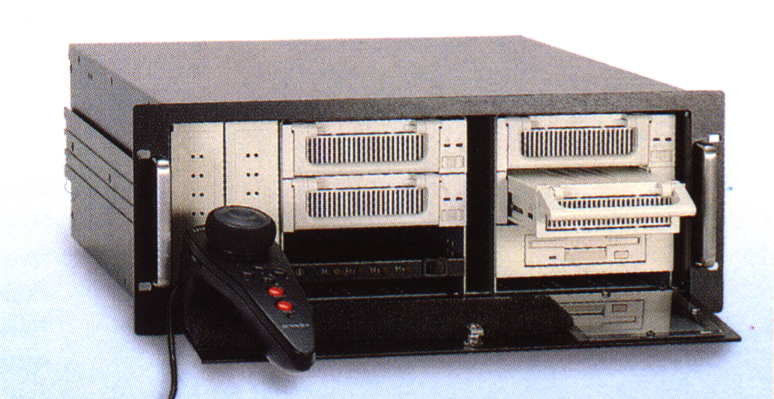

JOG optional

Advanced and Reliable operating system.
We decided develop our own proprietary operating system for higher performance and reliability several years ago, when others developers interested in win.98 or win NT base.
All the parameters are programmable.
Resolution 640x480, 320x480, 640x240, 320x240
Compression Rate Almost 1 Mbytes/frame jpeg to 8K-300Kbytes/frame
Frame Rate 1 to 30 frame/sec.
Lots of functions are programmable, Digital WITNESS is fully digital.
"VDFS" Stores huge data real time in normal EIDE HDD.
When recording huge data being output to storage devices, most of other products store data in "Wide SCSI" of "Ultra Wide SCSI" hard disk drives, that markups both cost and price, maintenance too. With our "VDFS" data storage system, all recorded huge data stores to normal EIDE hard disk drives in sequential mode, VDFS reducing most unnecessary arm movements of magnetic heads, not only performing reliable data recording , more friendly price and easier maintenance but also offering a good method to approach max MTBF of hard disk drive.(normally 100,000-150,000 hours)
Recyclable Recording.
When recording near to the end of HDD, Digital WITNESS will planning to write data on your next HDD if your machine has equipped more than one HDD, or Digital WITNESS will record new data on your HDD from the start once again.
Output single frame to floppy disk in ".bmp" or ".tga" format.
Once the user picks any frame in recorded data, each frame can be output to 1.44M Bytes floppy diskette in ".bmp" or ".tga" format, that can be easily re-processed in most PC with normal graphic processing software which is easy to get to get more clear image or user can output signal to any recorder ( for example VHS, SVHS ...) too, if the video is worthwhile, of course a super Hi-Resolution noise-free A-COPY you've got.
For wonderful digital surveillance recording, please contact us.
Table of App. Recording Time

HDD capacity(Gbytes)
60
60
60
60
60
60
60
60
60
60
60
60
Recording quality(Kb/frame)
15
15
15
20
20
20
30
30
30
50
50
50
Frame per second
15
30
15
30
15
30
15
30
Data output per second(Kb/sec)
15
225
450
20
300
600
30
450
900
50
750
1500
App. Recording time (Hour):
1111.1
74.1
37.0
833.3
55.6
27.8
555.6
37.0
18.5
333.3
22.2
11.1

Comparison sheet of digital video recorder systems

Digital WITNESS
Windows system
File system
VDFS
FAT
System size
300 Kb
100,000 Kb
System overhead
Low
High
System Crash
Never
Sometimes
System maintenance
Unnecessary
Scandisk Defragment
Booting time
Only 10 sec
More than 100 sec
Shut down
Just power off
Can’t power off directly
File open / close
No files direct to disk
Must open & close file
AC power crash
Just one frame bad
Whole file bad before close
AC power resumption
Direct resume recording
Get Scandisk first
Video for windows
We don’t use
1Gb .avi file limits

 Comparison Sheet of Data Storage Systems

VDFS
FAT
Head Read / Write
Sequentially
Move quickly
File Allocation Table
Unnecessary
Fat16 of Fat32
Large HDD support
Yes
Fat32 reducing 30% efficiency
HDD MTBF
Almost factory MTBF
Shorter than should be
Playing back speed
High speed bi-directionally
Slow
HDD requirement
EIDE
Ultra wide SCSI
Application
Specially for surveillance
For normal Computer
Reliability
Simple & reliable
You will get crosslinked
Data security
Hardly being modified
Can be modified easily

Power Requirement :  AC 90 V ~ AC 240 V, 50 ~ 60 Hz
Operating Temperature :  -10℃ to 60℃
Approx. Weight : 18 Kg
Signal System :  NTSC-type color signal and EIA monochrome signal
                          PAL-type color signal and EIA monochrome signal
Video Input : CVBS or S-Video (1 Vpp, 75 Ohm composite or Y/C)
Video Output : CVBS or S-Video (1 Vpp, 75 Ohm composite or Y/C)
Video Compression :   Industry standard JPEG compression
Recording Resolution :  640 * 480,  640 * 240,  320 * 480,  320 * 240
Recording Quality :   8 ~ 300 KB/Frame User programmable
Recording Frame Rate :  1 ~ 30 Frame/Sec and user programmable time lapse
Recording Media :   Hard Disk, DVD-RAM, DAT-Tape
Time Code :    Every Frame with Time Code , Year 2000 available
Control Input :    User programmable, DB-25 connector
Control Output :   User programmable, DB-25 connector
Remote Interface :   RS-232C, RS-422, RS-485, EtherNET 10BaseT / 100BaseT
PLAY SPEED :   1/90~300 X  Play Bidirection non noise , within Single Frame
User Interface :   On screen display and mouse control and jog

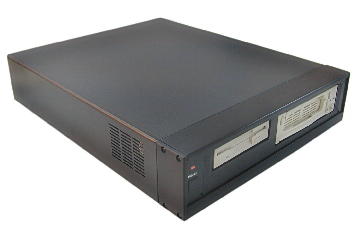

Compact / 2U 19” Rackmount
Digital Recorder Specification

Power Requirement :   AC 90 V ~ AC 240 V, 50 ~ 60 Hz , DC 12V , 24 V
Operating Temperature :  - 10℃ to 50℃
Approx. Weight :    8 Kg
Compact Dimension:   423 D * 350 W * 85 H  mm
2U 19” Rackmount Dimension: 415 D * 429.5 W * 88 H  mm
Recording Media :    25 GB Hard-Disk
Shock Prevent ( mobile use ):  build in shock reduce mechanism

All specification same with STANDARD Digital Recorder Except Above

Application Example :
Disk Capacity (GB)                   25          25          25           25          25          25
Rec. Quality (KB/Frame)          15          20          20            20          30          30
Rec. Frame Rate (Frame/Sec)      5          10          25           30          25          30
Rec. Capacity (KB/Sec)            75          200      500          600       750         900
Max. Rec. Time (Hour)           92.59     34.72     13.8      11.57      9.25        7.71
                                                                            PAL    NTSC      PAL     NTSC
                                                                            S-VHS quality  LaserDisk quality


Digital WITNESS target identifier

No more false alarm from now on



 digital WITNESS is developed basing on simulation of military targeting, it is programmed with advanced mathematical logic and algorithms to analyze the huge graphic data output continuously from our proprietary , it can identify human-like objects in motion, then output the alarm signal to there will be no more false alarm caused by animal, wind blow……

This is the digitized age, everything is programmed to be as automatic as possible.
In the surveillance market, lots of auto-sensing products are trying to satisfy consumer’s need, but because of too many exceptions in reality and too little intelligence in products, these products often become false alarms, cost and even troubles of people digital WITNESS target identifier is designed to solve this problem, there will be no more false alarm.

digital WITNESS target identifier works in 2 modes, tracing single target and multi-target.

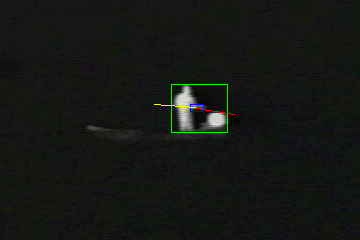

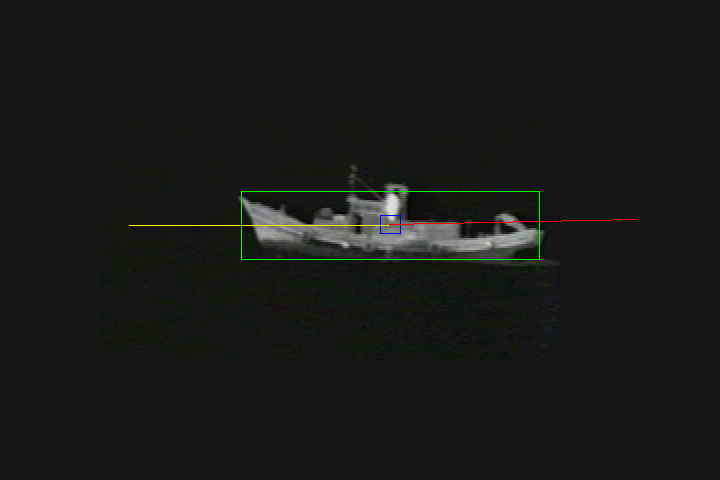

Single target mode is designed to work with thermal image camera, one still or moving brighter and bigger object will be aimed and locked.
Multi-target mode is efficient for surveillance, no matter how many human-like targets will be locked
After targets being locked, normally we program digital WITNESS to alarm in order to turn other devices on or off.

Broadcasting real alarm signal through Internet , telephone line , Ether net
Full-screen 640 x 480 , full motion video 30 frame per Second
NTSC , PAL & SECAM
Composite & S-video both input & output
For surveillance , reduce false alarm , even counter attack
Target Size > 5 x 5 pixels
Target Contrast > 20 % to background
Full Hardware based video synchronization
Object user selectable or Automatic Search
Data input output support RS-232 , RS-422 , RS-485 , Parallel , Digital I/O , Ether net 10 base T , 100 base T
Active Command dual input form Console & Data port
Support Multi Object or Single Object target & trace available
Support direct Video Capture & Display , Target position , Target size , Position , size & direction prediction
19” / 4U Rack Mountable 18 Kg
Power for AC 90 - 240V , 50 – 60 Hz



digital WITNESS video transmission

Ultra High Quality Video Transmission in Real Time



digital WITNESS video transmission system is a PC based hi-quality video image encoder and decoder. With the proprietary hi-speed encoder and decoder hardware and advanced encode and decode software, digital WITNESS transmits or receives 30 640x480 hi-color frames per second amazing fluently. In order to fit versatile transmission media and different bandwidth, there are frame size, frame rate per second and 4 resolution modes can be set up in digital WITNESS.

In the field of video transmission, a lot of low cost web camera solutions in the market, normally they do not satisfy many certain professional needs because they only transmit low resolution images in low frame rate, In fact professional equipment costs really much.

This is the computerized age, there are many things that were very expensive and rare become affordable and popular, digital WITNESS video transmission system offers most economic solution for professional market, high quality performance, compatibility and very reasonable price. This is the best choice of video transmission solution for surveillance, communication and broadcasting.

Power Requirement : AC 90 V ~ AC 240 V, 50 ~ 60 Hz
Operating Temperature : 0 to 50
Approx. Weight : 8 Kg
Signal System : NTSC color signal and EIA monochrome signal
PAL color signal and EIA monochrome signal
Video Input : CVBS or S-Video (1 Vpp, 75 Ohm composite or Y/C)
Video Output : CVBS or S-Video (1 Vpp, 75 Ohm composite or Y/C)
Video Compression : Industry standard JPEG compression
Transmission Resolution : 640 * 480, 640 * 240, 320 * 480, 320 * 240
Transmission Quality : 8 ~ 300 KB/Frame User programmable
Transmission Frame Rate :1 ~ 30 Frame/Sec and user programmable time lapse
Transmission Media : LAN, WAN, Internet, ISDN, XDSL,E1,T1,dual E1
Control Input : User programmable, DB-25 connector
Control Output : User programmable, DB-25 connector
